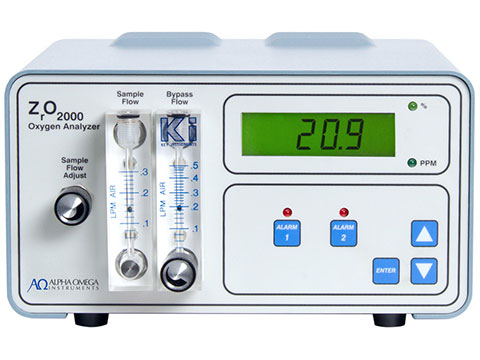

The AOI ZRO2000 oxygen analyzer with a non-depleting zirconia oxygen sensor is designed to provide accurate and repeatable trace and percent oxygen measurements in a variety of gases. The unit is microprocessor-based and measures gas phase oxygen concentrations over a range of 0.1 ppm to 100%.
The analyzer is housed in a NEMA 1 enclosure rated for general purpose use. The front panel contains five switches that provide access to the analyzer’s settings. Oxygen values are displayed on a 0.7in (17.8mm) high 6-digit liquid crystal display. The instrument is equipped with two scalable analog outputs that can be configured for 0-20 mADC or 4-20 mADC separately. The analyzer also features two user-configurable oxygen alarm relays, a built-in audible alarm, red LEDs for visual indication of an alarm condition, green LEDs to indicate whether the LCD is displaying percent or trace results, and two flow meters for sample flow and bypass flow.
AOI ZRO2000 Oxygen Analyzer Applications
Modified atmosphere packages (MAP)
Biological reactors
Pharmaceutical processing
Semiconductor manufacturing
Vessel blanketing
Glove boxes
Critical welding
Heat treating
Leak detection
Air separation
