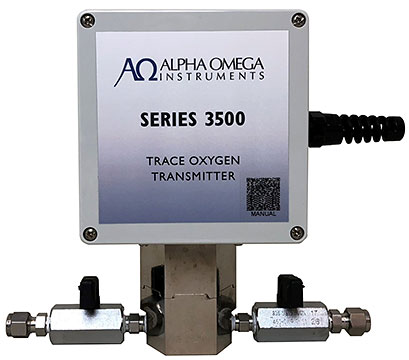

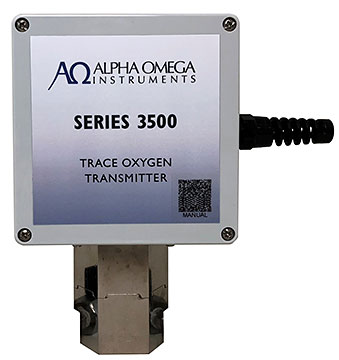

AOI Series 3500 Oxygen Transmitter

The AOI Series 3500 oxygen transmitter is a loop-powered analyzer designed to provide trace oxygen measurements in a variety of background gases. The transmitter’s enclosure is made from durable polycarbonate. The 4-20 mADC output can be used with a data logger, recorder, programmable logic controller, or digital control system.

The Series 3500 features an ambient-temperature electrochemical sensor. The enhanced mechanical design of the sensor ensures longer life, and virtually eliminates leakage of caustic electrolyte. The sealed sensor is not position-sensitive and does not require manual adjustment based on changes in the molecular weights of sample gases such as helium and hydrogen. The output from the sensor is both linear and temperature-compensated to provide optimum performance.

An optional CO2-tolerant trace oxygen sensor is capable of providing accurate oxygen readings in gases containing up to 100% CO2 without shortening the life of the sensor.

AOI Series 3500 Oxygen Transmitter Applications
Heat Treating
Air Separation
Glove Boxes
Inert Gas Generators
Chemical Manufacturing
Process Dryers
Vessel Blanketing
Petrochemical Processing
Pharmaceutical Manufacturing
Anaerobic Chambers
Food Processing
Beverage Processing

Features

• Measurement options

  0-10; 0-50; 0-100; 0-500; 0-1,000; 0-5,000;

  0-10,000; or 0-20,000 ppm
• ±1% of full scale accuracy
• 90% of full scale in less than 10 seconds response time
• 40 to 104°F (5 to 40°C) operating temperature range
• 14-32 VDC input power
• 4-20 mADC analog output
• 2-year electronics and 1-year sensor warranty
• NEMA 4X (IP66) watertight enclosure
