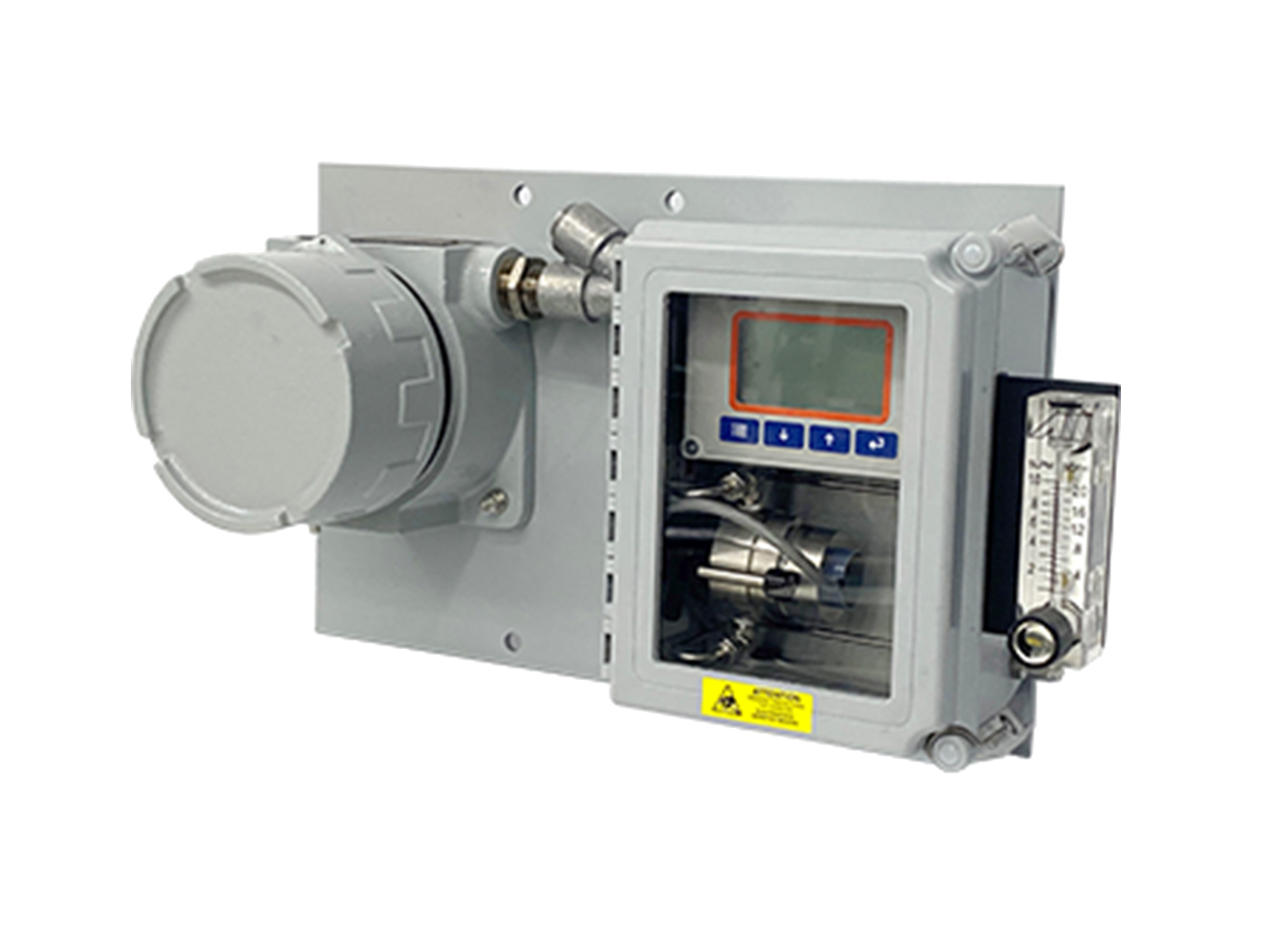

AII GPR-2800 IS Oxygen Monitor

The AII GPR-2800 IS Oxygen Monitor is a 18-24V DC loop powered transmitter and provides a 4-20mA output with temperature compensation. It is designed for use in hazardous areas, measuring the oxygen concentration where there is potential for gas leaks to prevent oxygen depletion or asphyxiation and ensure safety of personnel.

Applications:
Cylinder storage areas
Rooms with gas lines
Rooms with purged processes or vessels
Large chambers that are purged with inert or other gases
Confined spaces

Features

• 0 to 25% measurement range
• Temperature compensation
• 0.1% O2 sensitivity (LDL)
• <1% of scale linearity
• XLT-11-24 and XLT-11-24-LD sensor options available for gases containing >0.5% CO2
• Sensor lifespan at 25°C (77°F) and 1 atm:
  • GPR sensors: 32 months in air
  • XLT sensors: 24 months in air
• 4-20 mA output
• 18-24V DC loop powered
• Fiberglass NEMA 4X and painted aluminum Exd enclosure
• cMETus or ATEX/IECEx/UKEX hazardous configuration
