The AEMC OX5042 Oscilloscope is compact, shockproof, IP54 and can be comfortably held in one hand. The Handscope is an ergonomically designed instrument equipped with a color screen and LED backlighting for precise, crisp data display. Integrated multilingual help screens are available at all times to make it simpler to use.
The Model OX5042 Meter (2150.21) ships complete with small classic tool bag, USB Wall plug, USB cable, Set of 2, 10 ft. Color-coded Leads (red/black), Set of 2, Color-coded Alligator Clips (red/black), Set of 2, Color-coded Pencil Probes (red/black), BNC Adapter, 2 Probe 10:1 600V BNC male, 1.2V NiMH rechargeable batteries, quick start guide, and USB drive with software and user manual.

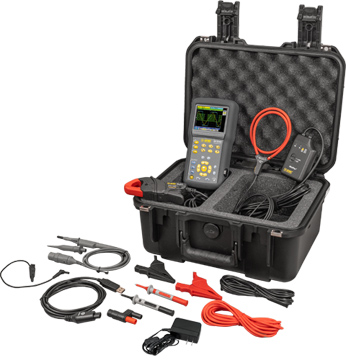

The Model OX5042-Kit (2150.22) upgrades the carrying case with a hard plastic molded field case. This kit also includes the 24in 3000A AC MiniFlex® Sensor 3000-24-1-1 and the clamp Current Probe Model MN251T which measures down to 1A AC.
Like the 2150.22, the Model OX5042-Kit (2150.23) ships complete with field case and 24″ 3000A AC MiniFlex® Sensor 3000-24-1-1. However it is better suited for lower AC currents as it includes the clamp current Probe Model MN379T which measures down to 50mA AC current.
The Model OX5042 combines three measuring instruments in one:
2 fully isolated channels, 600V CATIII
40MHz oscilloscope, range 5mV to 200V/div
Independent 8000-count multimeter with power measurements
Built-in harmonic analyzer out to the 31st harmonic (fundamental between 40Hz and 450Hz)
